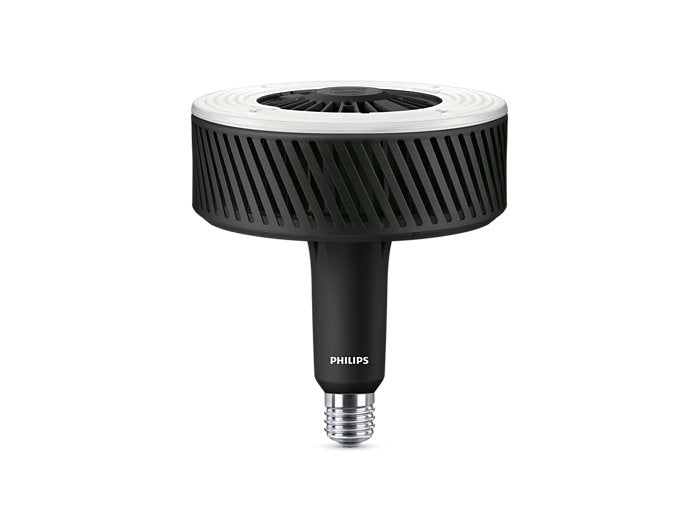

Philips TrueForce LED Industrial and Retail Mains (Highbay – HPI/SON/HPL)
Pickup available at Crn. 14th Avenue and Voortrekker Road
Usually ready in 4 hours
The best LED solution for High Intensity Discharge (HID) lamp replacement.
Product family information
Philips TrueForce LED I&R mains lamps offer an easy and short payback LED solution to replace High Intensity Discharge (HID) lamps. The products bring the energy efficiency and long lifetime benefits of LED to HID replacement and provide instant saving and low initial investment. With the right lamp size and light distribution, you can easily retrofit TrueForce LED I&R mains lamps and bypass the existing ballast while enhancing the lighting quality.
Options
- TrueForce HB 140W E40 865 NB LA - Narrow Beam
- TrueForce HB 140W E40 865 WB LA - Wide Beam
Benefits
- Cost saving with short payback time
- Enhance lighting quality with easy adoption
- Low initial investment
Features
- High energy efficiency
- 20,000lm output
- Right lighting distribution
- Pleasant white light with CRI 80
- Lifetime 50,000hrs
- Connect to mains directly and save additional energy
Applications
- Industrial/retail - warehouses, factories, shops, transport hubs
Specifications
General information
Light source clour - 840 neutral white
Optical cover/lens type - Polycarbonate liner
Control interface - NA
Protection class IEC - Safety class II
CE Mark - yes
Number of products on 16A type B MCB - 117
Light source engine type - LED
Operating and electrical
Input Voltage - 220 to 240 V
Input Frequency - 50 to 60 Hz
Power Factor (Min) - 0.9
Controls and dimming
Dimmable - No
Mechanical and housing
Housing material - Polycarbonate
Optical cover/lens material - Polycarbonate
Optical cover/lens finish - Opal
Overall length - 600 mm
Overall width - 70 mm
Overall height - 27 mm
Colour - White
Approval and application
Ingress protection code - IP20
Mech. impact protection code - IK03
Initial performance (IEC compliant)
luminious flux (system flux) - 1600 lm
luminous flux tolerance - +/-10%
LED luminaire efficacy - 100 lm/W
Colour temperature - 4000 K
Colour rendering index - >80
Input power - 16 W
Power consumption tolerance - +/-10%
Application conditions
Ambient temperature range - -20 to +40 deg C
Product data
Order product name - BN005C LED15/NW L600 PSU GM
EAN/UPC - Product - 8710163369785
Order code - 911401827381
Numerator - Quantity Per Pack - 1
Numerator - Packs per outer box - 50
Material Nr. (12NC) - 911401827381
Net Weight (Piece) - 0.220 kg
