Description

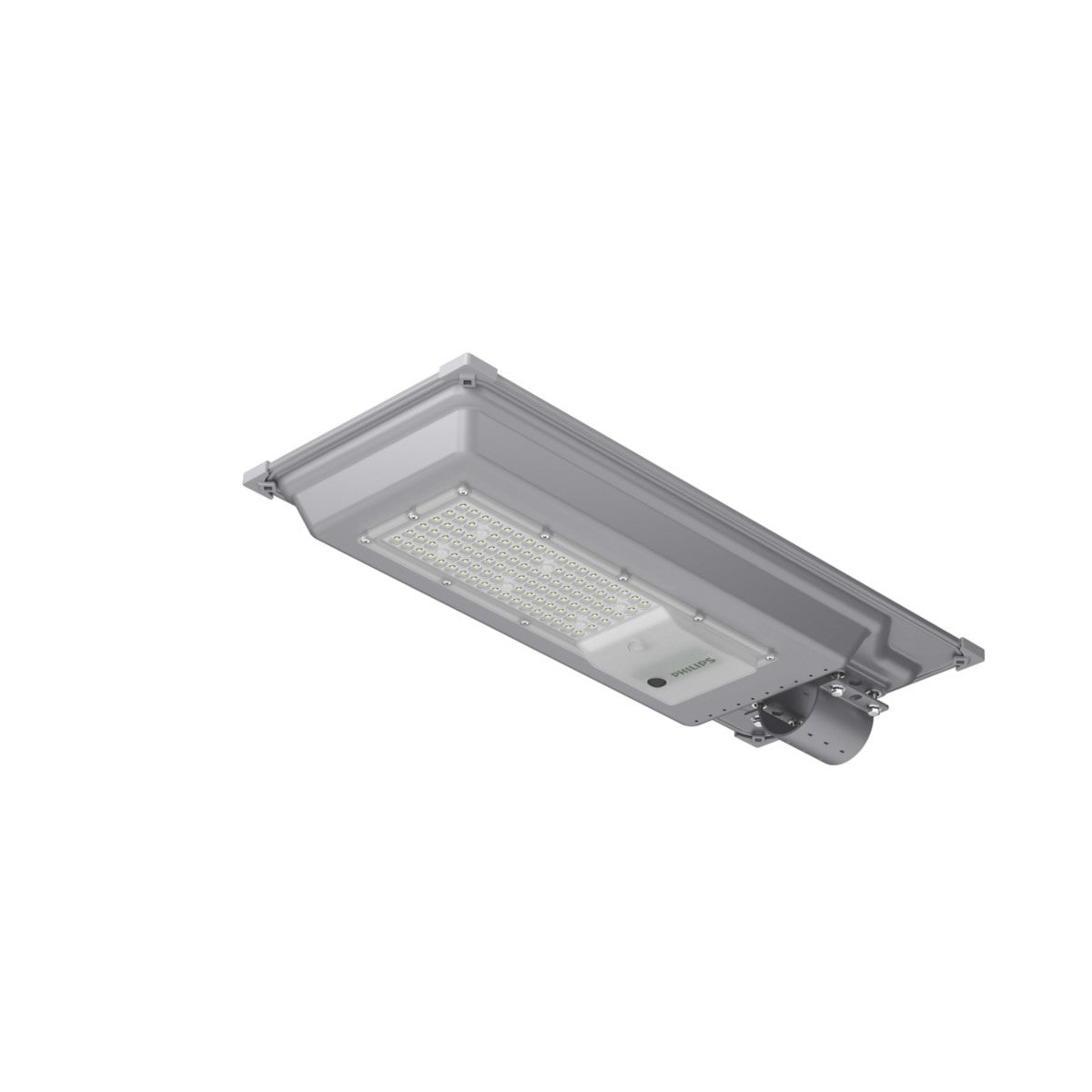

Philips SmartBright BRC010M is an off-grid solar pathway luminaire for pedestrian routes, landscaped areas and similar outdoor applications. This 4000 lm model combines an integrated solar panel and LiFePO4 battery in an IP65 metal housing.
Mounting accessory sold separately. The BRC010M mounting arm is compatible with the 2000 lm and 4000 lm models and is not included. Add it where your installation requires the arm.
Key specifications
- Luminous flux: 4000 lm
- Colour temperature: 6500 K
- CRI: 70
- Luminous efficacy: 160 lm/W
- Battery: LiFePO4, 16.5 Ah, 3.2 V
- Solar panel: polycrystalline, 15 W peak, 4.5 V
- Power source: off-grid solar
- Conventional dimmable status: No; pre-configured solar operating profile
- Housing: silver-grey metal
- Ingress protection: IP65
- Dimensions: 60 × 221 × 511 mm
- Net weight: 2.35 kg
- Ambient temperature range: 0 °C to 45 °C
- Driver included: Yes
Installation and application
- Manufacturer installation guidance limits mounting height to 4 m.
- No external electrical connection is required for normal off-grid solar operation.
- Manufacturer guidance identifies the family for walkways, pedestrian routes and landscaping-type applications rather than main-road lighting or areas with vehicle movement.
Manufacturer code: 911401875702 · EAN: 6923828671761
