TCI & Vossloh Schwabe
24V LED Driver (Constant Voltage) for LED Strip Lights — 30W, 60W, 75W, 120W, 180W
Regular price
R 240.00 ZAR
Regular price
R 0.00 ZAR
Sale price
R 240.00 ZAR
Unit price
per
Tax included.
Couldn't load pickup availability
Quick pick: which wattage do I need?
- Find your strip’s watts per metre (e.g. 9.6 W/m).
- Multiply by your length (e.g. 4 m → 38.4 W).
- Choose the next size up (add 10–20% headroom).
Example: 38.4 W → choose the 60 W driver.
- Long runs: feed from both ends or split across drivers to reduce voltage drop.
- Need dimming? Use a 24 V PWM dimmer on the low-voltage side (these drivers are not mains-dimmable).
What this driver does
Converts normal SA mains (220–240 V AC) to a steady 24 V DC for LED striplights. Constant-voltage output keeps your strips bright and stable, with built-in protection.
Shared specs (all versions)
| Output | 24 V DC (constant voltage), SELV |
|---|---|
| Input | 220–240 V AC, 50/60 Hz |
| Dimming | No (use 24 V PWM dimmer if required) |
| Protections | Short-circuit, overload, no-load |
| Use | Indoor, IP20 |
| Primary / Secondary cable | 0.75–1.5 mm² / 0.5–1.5 mm² |
Choose your wattage
| Wattage | Brand family | Manufacturer code | Max output current | Typical use |
|---|---|---|---|---|

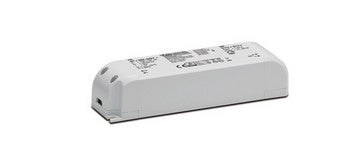

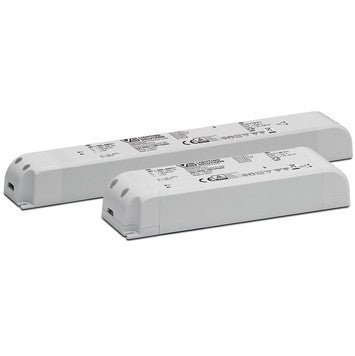

| 30 W | Vossloh-Schwabe EasyLine | VS186624 | 1.25 A (30 ÷ 24) | Short runs, under-cabinet, furniture lighting |

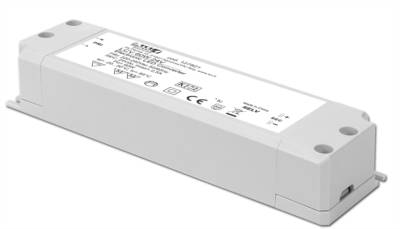

| 60 W | TCI LCV | TCI127821 | 2.50 A | Most kitchen/bedroom runs, 4–6 m at 9.6 W/m |
| 75 W | Vossloh-Schwabe EasyLine | VS186626 | 3.13 A | Medium runs or slightly higher-power strips |
| 120 W | Vossloh-Schwabe EasyLine | VS186627 | 5.00 A | Longer runs or multiple segments |

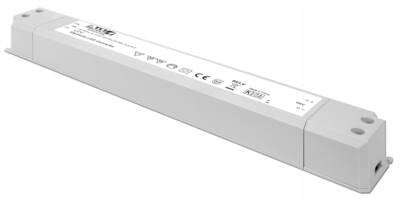

| 180 W | TCI LCV | TCI127825 | 7.50 A | High-load, shopfitting, retail shelving |
Max output current is calculated as Watts ÷ 24 V for constant-voltage drivers.
Full technical specs
Power quality (PF, THD, ripple)
| Wattage | PF (full load) | THD | Output ripple | Notes |
|---|---|---|---|---|
| 30 W (VS) | >0.95 | <7% | ≤3% | Compact housing |
| 60 W (TCI) | >0.90 | — | Ripple-free | Active PFC |
| 75 W (VS) | >0.95 | <5% | ≤3% | “C-L” long housing |
| 120 W (VS) | >0.95 | <16% | ≤3% | High efficiency |
| 180 W (TCI) | >0.90 | — | Ripple-free | Active PFC |
Dimensions (L × W × H)
Model-specific sizes; see downloadable datasheets if you need exact mechanicals.
- 30 W (VS): ~153 × 41 × 32 mm
- 60 W (TCI): ~180 × 52 × 30 mm
- 75 W (VS): ~180 × 52 × 30 mm
- 120 W (VS): ~300 × 40 × 30 mm
- 180 W (TCI): ~345 × 50 × 35 mm
What's in the box
- 24 V LED driver (selected wattage) × 1
Install & safety
- Switch off mains before wiring; observe polarity on the 24 V output.
- Use appropriate cable sizes: primary 0.75–1.5 mm²; secondary 0.5–1.5 mm².
- Mount in a ventilated space; do not cover the driver.
- For 24 V LED strips only (not 12 V, not constant-current modules).
Delivery, returns & warranty (SA)
- Dispatch: 1–2 business days if in stock
- Returns: 7-day change-of-mind (unused, original packaging)
- Warranty: Vossloh-Schwabe 5 years; TCI standard warranty
Downloads
- Vossloh-Schwabe EasyLine 24 V (30/75/120 W) — Datasheet (PDF)
- TCI LCV 24 V (60/180 W) — Datasheet (PDF)
