Philips HLS168 50m LED Strip – 230V – 7.5 W/m or 9 W/m – 3000K / 4000K / 6500K - LED Strip outdoor (IP65)
Couldn't load pickup availability

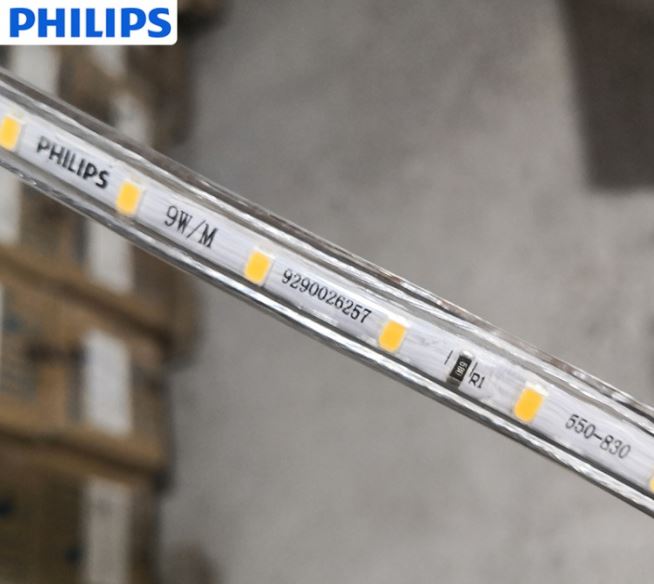

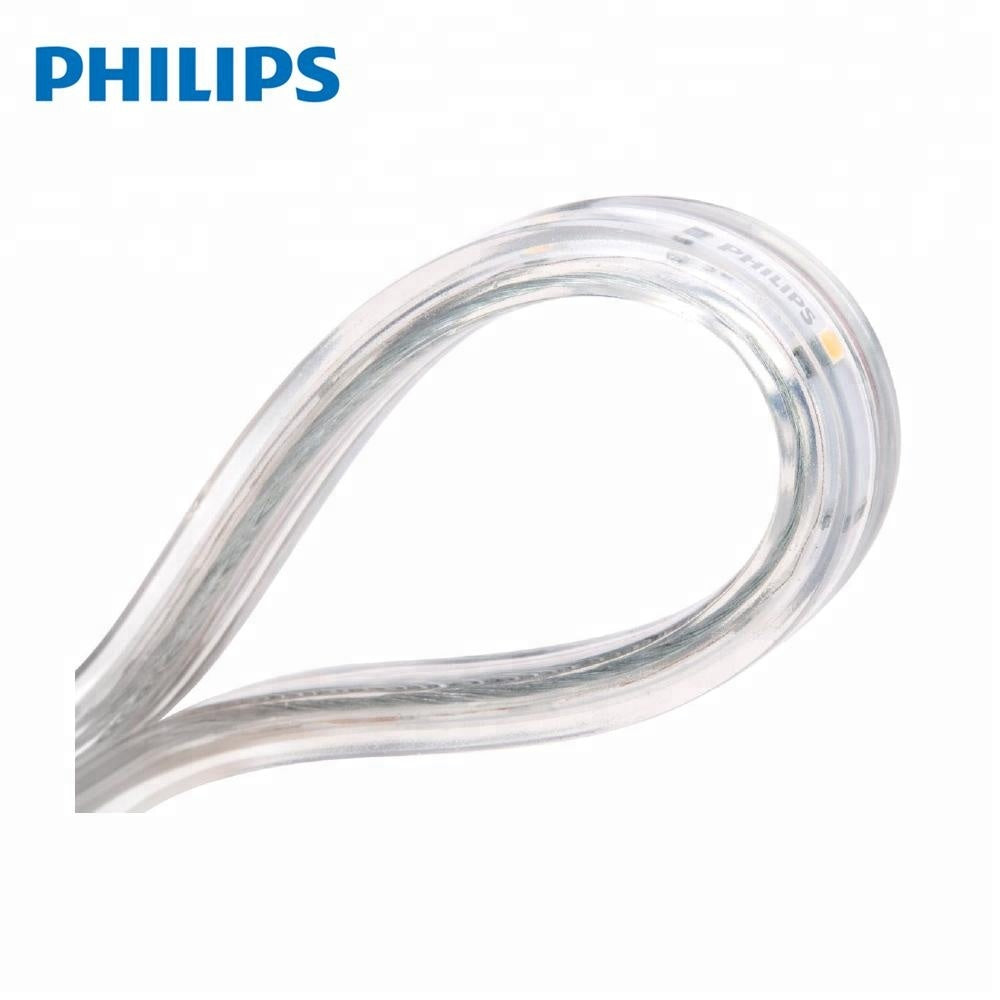

Philips HLS168 High-Voltage LED Strip — 50 m Roll (7.5 W/m or 9 W/m)
Bright, even cove and pelmet lighting with the simplicity of 220–240 V mains power. Choose 7.5 W/m (softer accent) or 9 W/m (brighter wash) in 3000 K (Warm), 4000 K (Neutral) or 6500 K (Daylight).
IP & water protection — please read:
• The strip body is IP65.
• Connectors/adapters are IP20.
• The overall installation rating equals the lowest IP part. Unless all connections/ends are sealed to the same level, treat the system as IP20.
Cutting & powering:
• Cut marks every 1 m only.
• One (1) power adapter kit is included with the 50 m roll.
• Each separate piece you cut and power needs its own Spare Adapter Kit (power connector/lead).
• Example: cutting into 3 pieces ⇒ you need 3 power connectors (1 included + add 2 kits).
Brightness options
| W/m | CCT choices | Typical output | Approx. efficacy |
|---|---|---|---|
| 7.5 W/m | 3000 K / 4000 K / 6500 K | ≈350 lm/m (3000 K may be ≈330 lm/m) | ≈45–47 lm/W |
| 9 W/m | 3000 K / 4000 K / 6500 K | ≈600 lm/m | ≈66 lm/W |
Notes: Typical values vary slightly by colour and installation.
What’s in the box

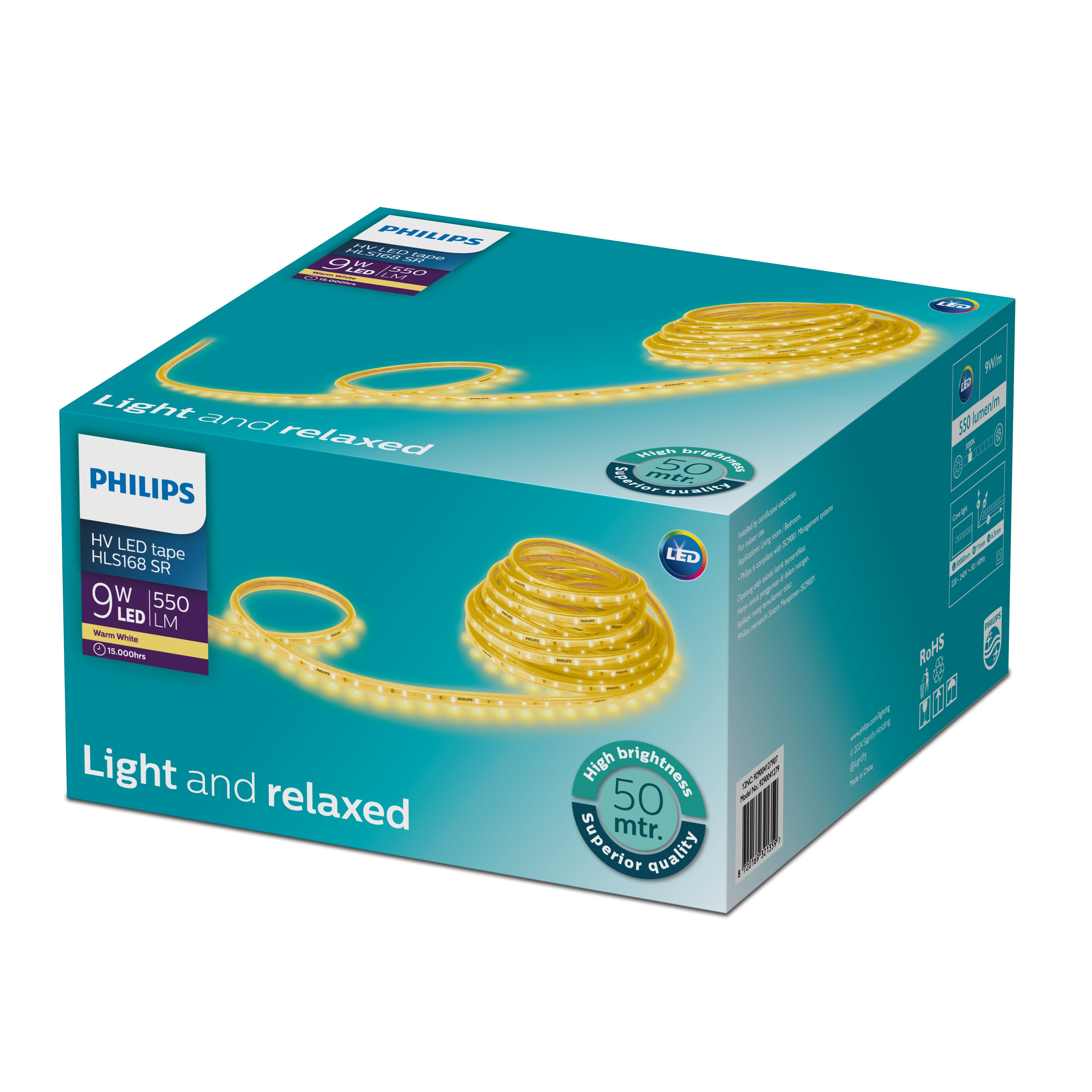

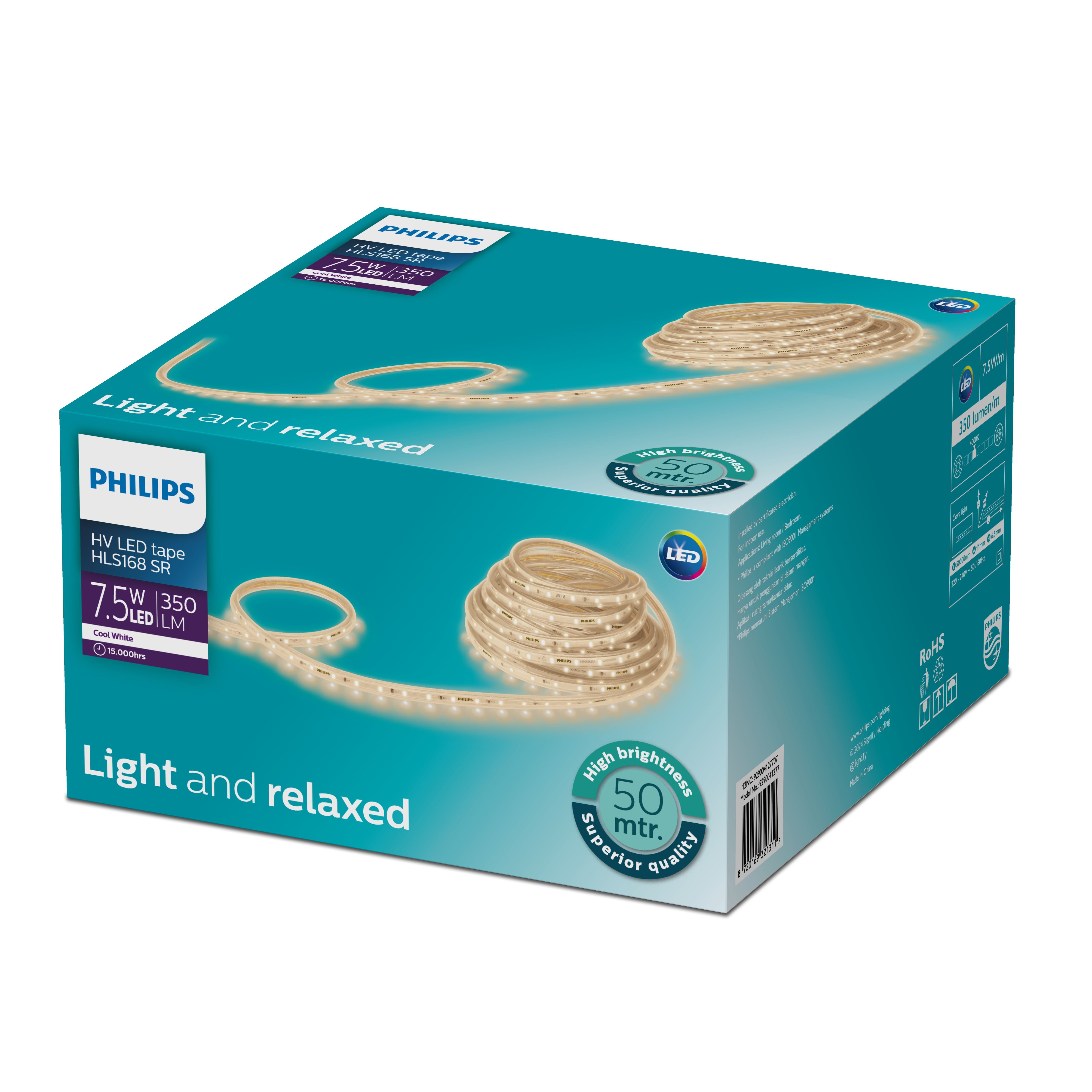

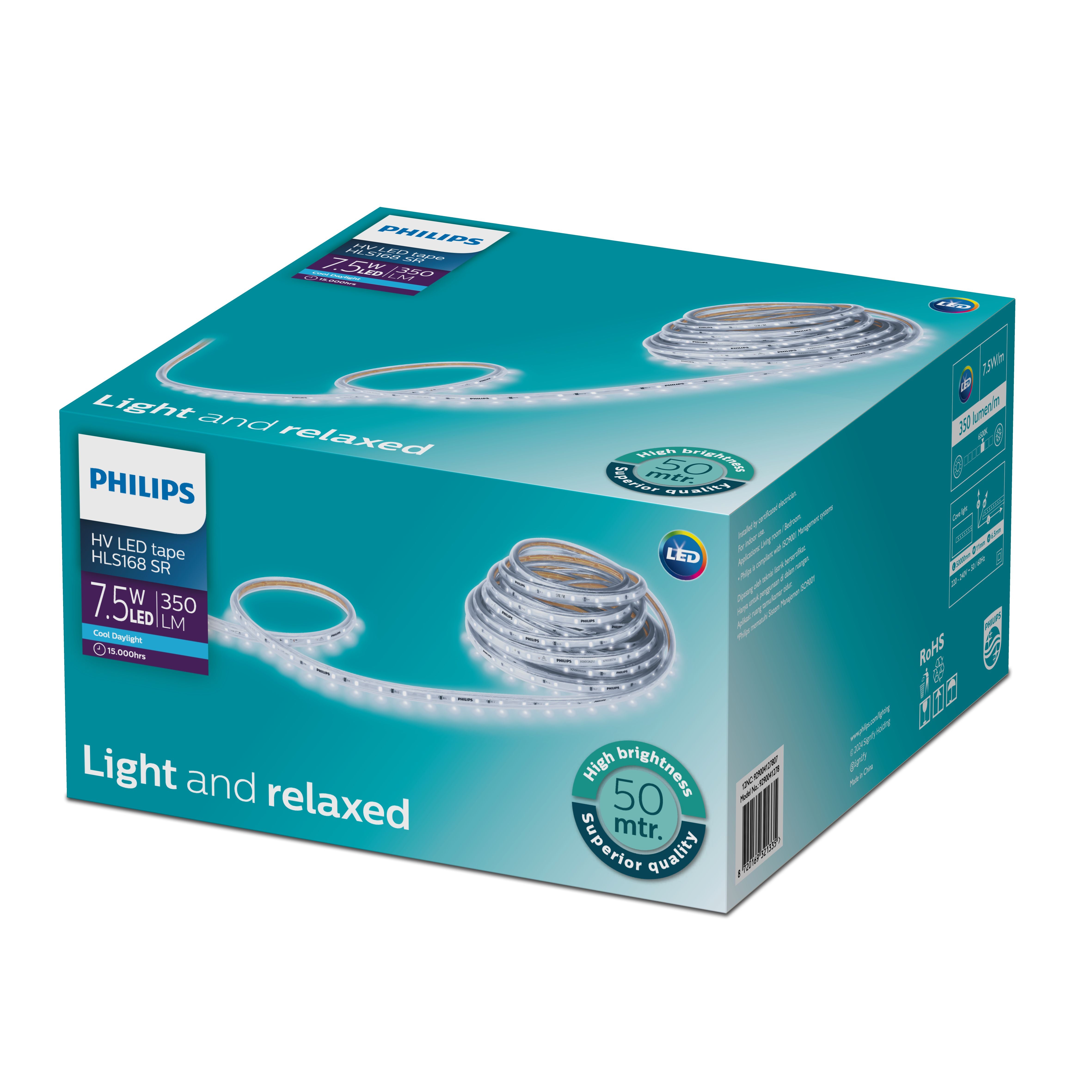

- 1 × 50 m Philips HLS168 LED strip (approx. 11 mm W × 6.5 mm H)

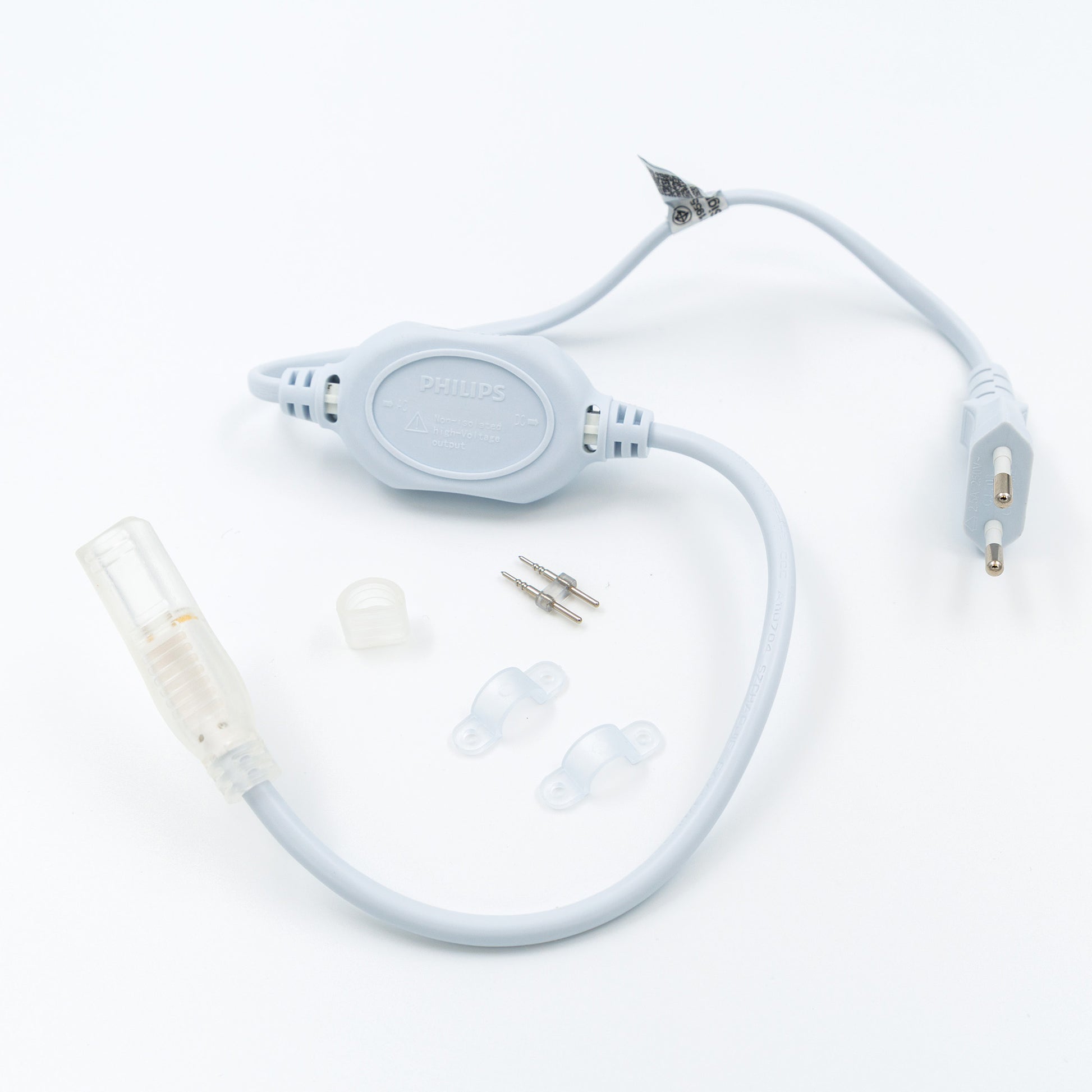

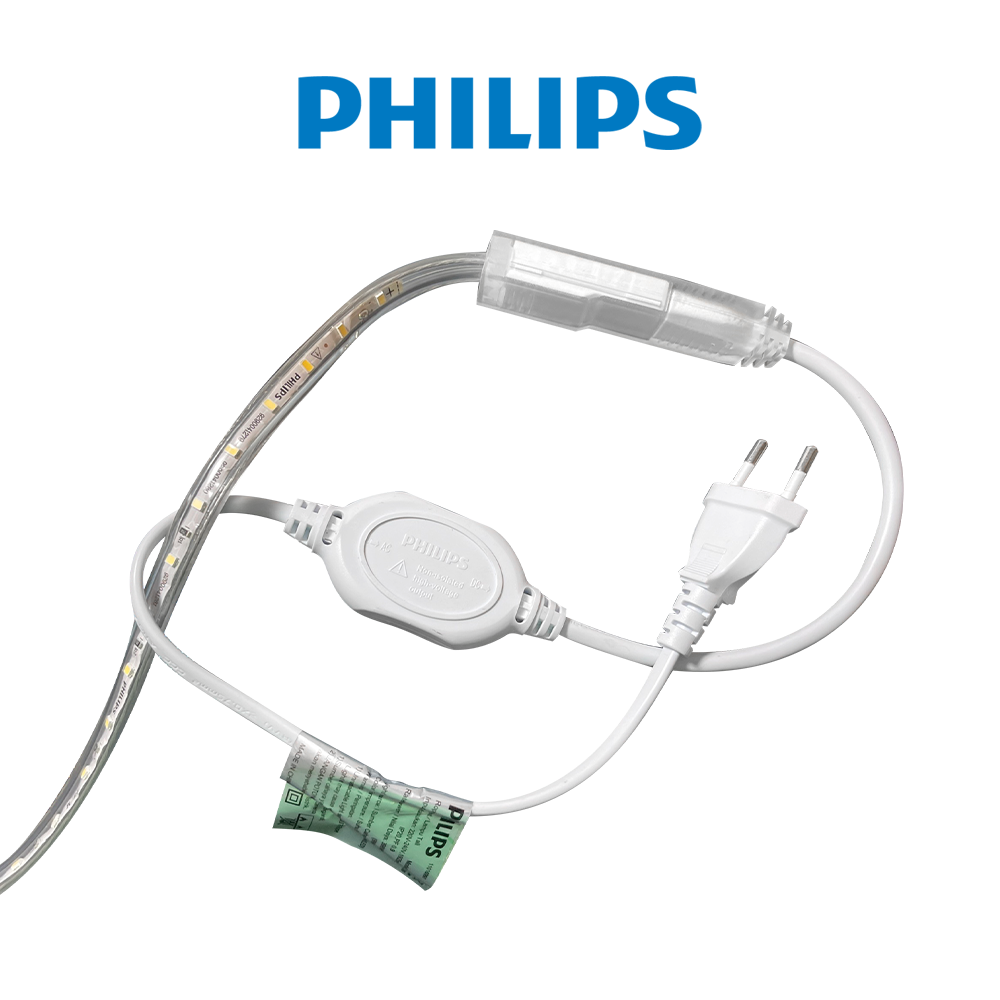

- 1 × Power adapter kit (included) to connect the roll to 220–240 V AC with mounting clips
You’ll likely also need
- Spare Adapter Kits — one per extra cut piece you plan to power
- Mounting channel or extra clips for straight lines and strain relief
Installation essentials
- Cut length: Every 1 m at marked points
- Power: 220–240 V AC • Non-dimmable • Class II (double-insulated)
- Optics & colour: 120° beam • CRI 80 • SDCM ≤ 5
- Dimensions: 50 m roll • ≈11 mm (W) × 6.5 mm (H)
- IP guidance: Strip body IP65; connectors & adapters are IP20. Overall protection follows the lowest IP part unless professionally sealed to equivalent protection.
- Safety: Isolate mains before cutting/connecting. Installation by a qualified person recommended.
Where it shines
Long coves and pelmets, retail perimeters, reception ceilings, corridors, and feature wall washes.
Key specifications
- Voltage: 220–240 V • Power factor: 0.9 • Warranty: 2 years
- Typical output: 7.5 W/m ≈350 lm/m (3000 K ≈330 lm/m); 9 W/m ≈600 lm/m
- Non-dimmable • 120° beam • CRI 80 • Class II
